Aluminium Gangways

In our assortiment we have 2 different types
Type BOAC D-series and type BOAC SV & S-series

Products4Ships aluminium gangways inland vessels
Especially designed for the inland shipping
Products4Ships aluminium gangways inland vessels
With detachable guard rail stanchions at one side or both sides
Products4Ships Gangway BOAC D inland vessels
According the Dutch NEN-EN 526 standard, "Inland shipping"

Type BOAC D

For the Inland shipping

Products4Ships Gangway BOAC D inland vessels
Width of tread 400mm

Aluminium AW6060 & AW6082

Products4Ships Gangway BOAC D
Available in lengths from 2 metres up to 8 metres (with increments of 1 metre)

Including:
– Orkava rope 18mm
– Set of straight hooks
– Set of wheels
– 4 pc. of lashing brackets
– Factory Certificate

Options:
– Triple slats
– Safety net
– Lifting plates
– Customization

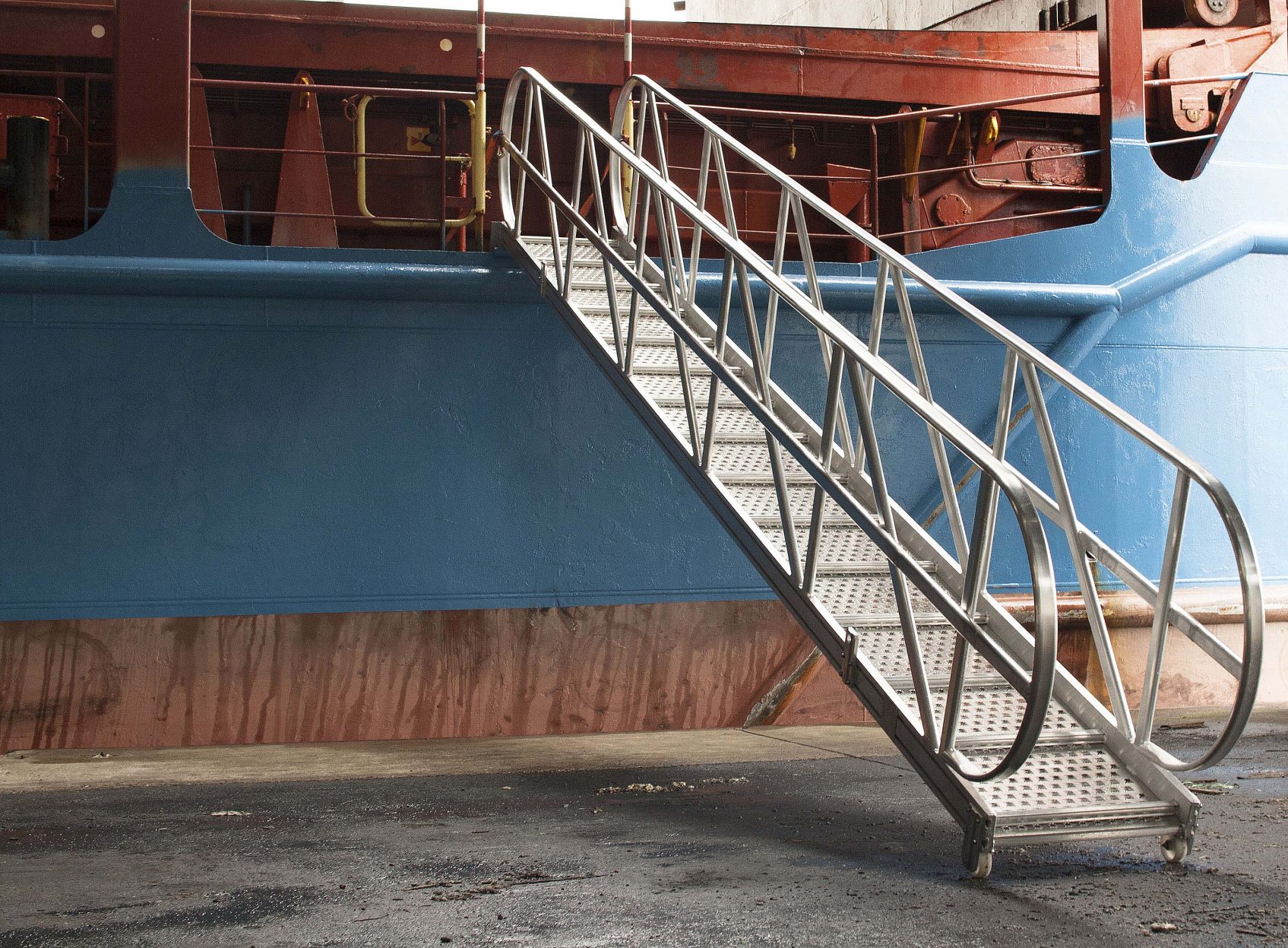

Products4Ships aluminium gangways sea going vessels
Especially designed for the Seagoing Vessels
Products4Ships aluminium gangways sea going vessels
With solid handrail (SV) or detachable guard rail stanchions at both sides (S)

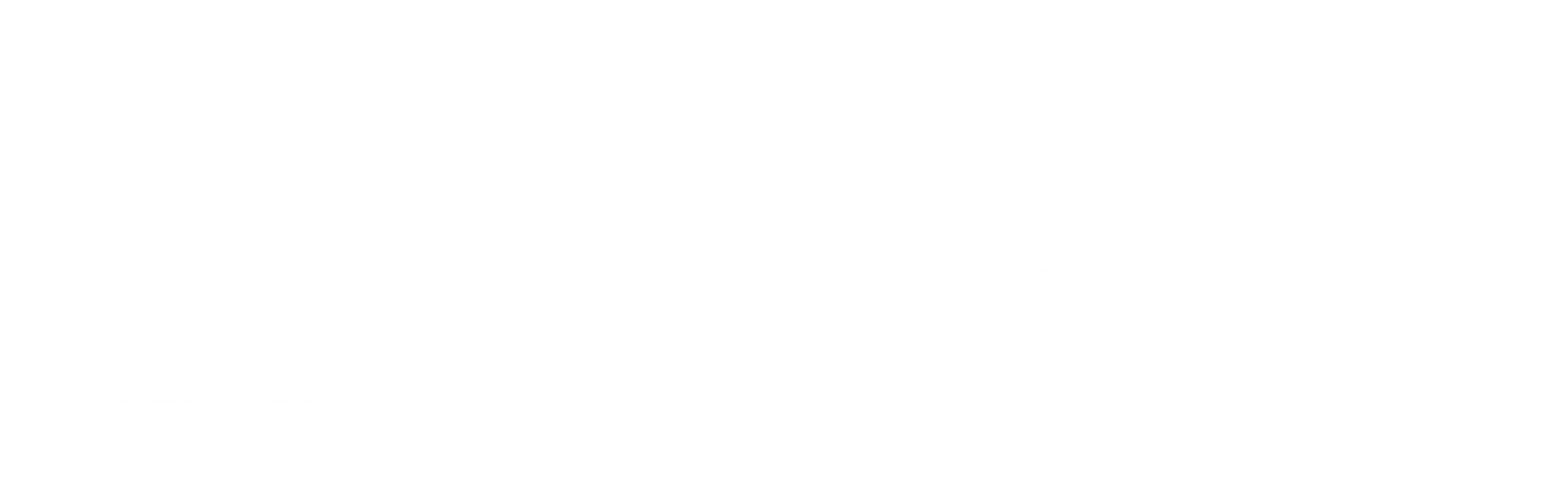

Products4Ships gangway BOAC SV
According the Dutch NEN-ISO 7061:2015 standard "Ships and marine technology - Aluminium shore gangways for seagoing vessels"

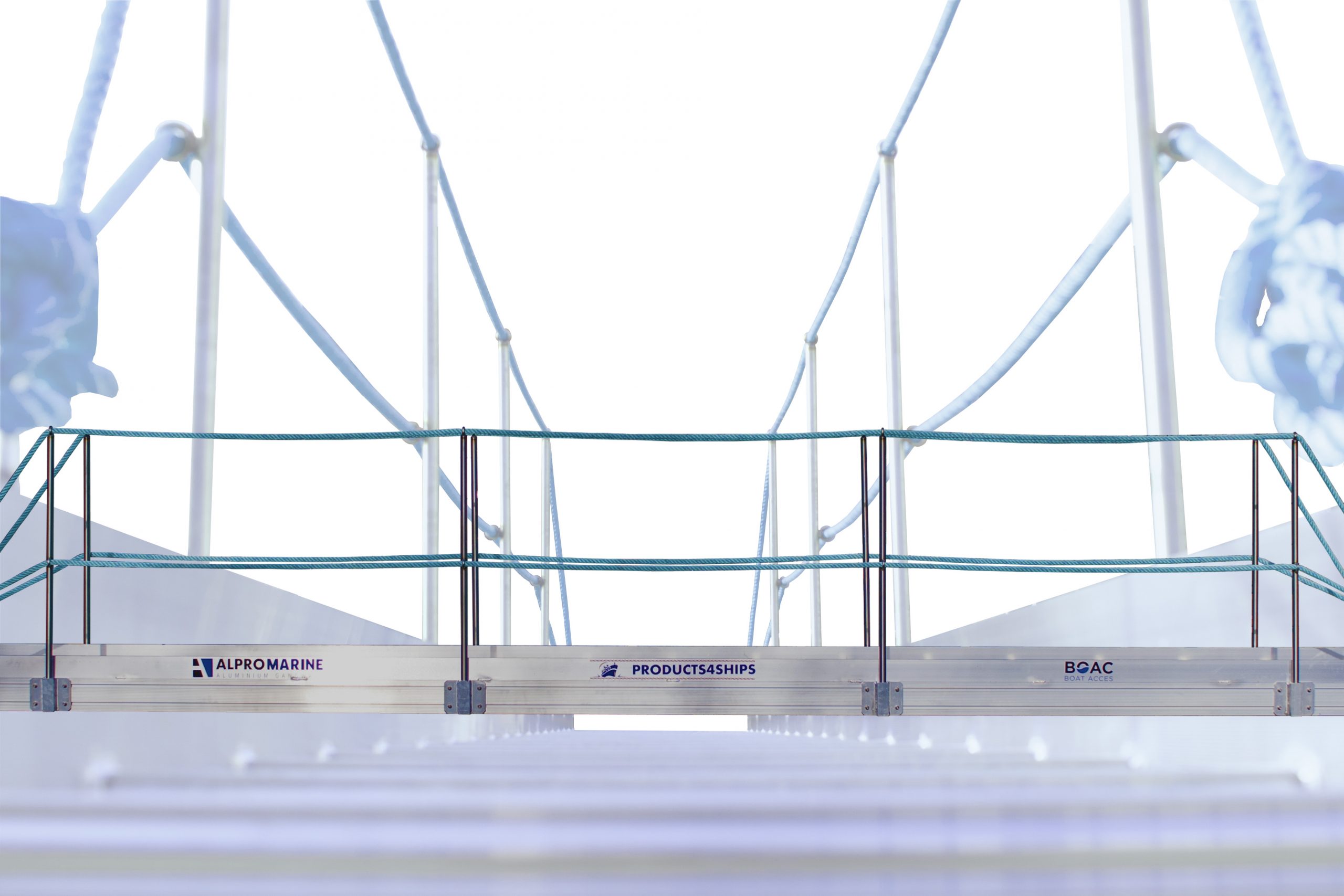

Type BOAC SV & S

For Seagoing vessels

Products4Ships gangway BOAC SV
Width of tread 600mm

Aluminium AW6060 & AW6082

Products4Ships gangway BOAC SV
Available in length from 2 metres up to 8 metres (with increments of 0,5 metre)

Inclusief:
– Orkava rope 18mm (type S)
– Triple slats
– Set of straight hooks
– Set of wheels
– 4 pc. of lashing brackets
– 4 pc. of lifting plates
– Factory Certificate

Opties:
– Safety net
– Customization

Benefits
Our (standard) gangways are equipped with easy dismountable stanchion-connecters, stanchions, lifting plates, wheels and hooks. These components and mounting materials are seperately available. In case of (per example) damage, replacement will be very easy and the gangway will be quickly safe and usable again.

Customized products
Besides the gangways we also deliver custom made aluminium products like (work)platforms, railings, stairs and bulwark stairs

Products4Ships Bulwark ladder

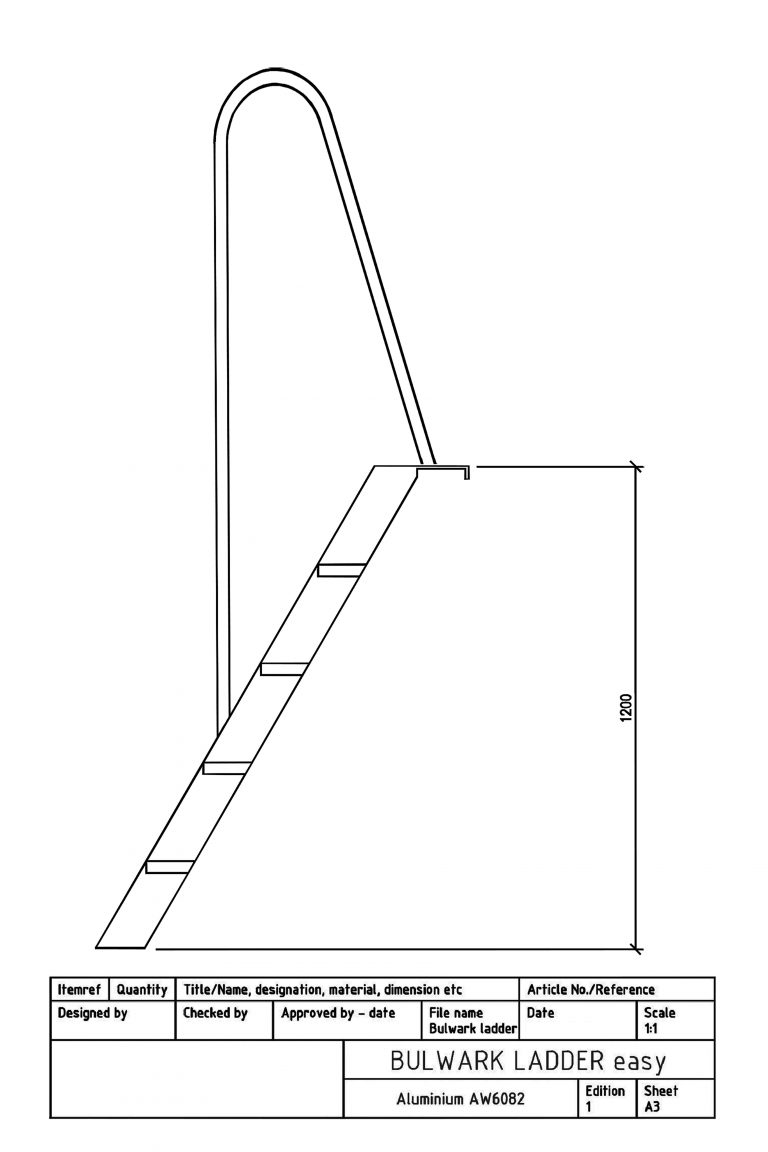

Products4Ships Bulwark ladder Easy

For the purpose of the shipping and shipbuilding sector PRODUCTS4SHIPS has a co-operation with ALPRONED B.V. Bennekom The Netherlands

Please send us your request for quotation at info@products4ships.com and we will offer you our best price and delivery time
